Specifications

Standard

Rallye

Front Suspension

 Torsion bars

Heavy duty torsion bars + sway bars

Rear Suspension

 asymetrical leaf springs

Heavy duty asymetrical leaf springs + sway bars

Wheels; Tires

14 x 5; 7.35 x 14 Polyester BSW

14 x 5.5; F70 x 14 bias-belted WSW

Brake system

Front: Disk, Rear: 10” x 2 1/2’ Drum

Front: Disk, Rear: 10” x 2 1/2’ Drum

Electrical system

Battery: 280 A (´74 305 Amp), 41 Amp Alternater, Electronic Ignition

Shipping weight (1972model)

3,125 lbs (1,418 kg)

3,225 lbs (1,463 kg)

Fuel Tank

18 gallons (68 liter)

Trunk capacity

9.6 cu. ft. (0.27 cu.m.)

Maximum vehicle capacity

800 lbs

Production figures

1972

1973

1974

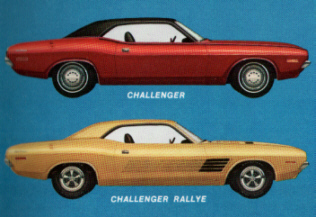

Challenger

18,535

27,930

11,354

Challenger Rallye

8,128

Rallye was only  option code

Rallye was only  option code

Retail Price in US$

1972

1973

1974

225 ci - slant six

2,790

n/a

n/a

318 ci - V8

2902

3,011

3,143

340 ci - V8

3,082

+181 (option price)

n/a

360 ci - V8

n/a

n/a

+259 (option price)

Engine Specifications

225ci (3,7l)

318ci (5,2l)

340ci (5,6l)

360ci (5.9l)

Option Code on VIN

C

G

H

K

HP(SAE)/ RPM *

105/4000

150/3600

240/4800

245/4800

Carburator

1bbl Carter

2bbl Carter

4 bbl Carter ThermoQuad

4bbl

Net-Torque (lb.-ft./RPM) *

185/1600

265/2000

295/3600

320/3600

Compression ratio

8,4:1

8,6:1

8,5:1

8,4:1

Bore and Stroke

3.41x4.12

3.91x3.31

4.04x3.31

4.04x3.58

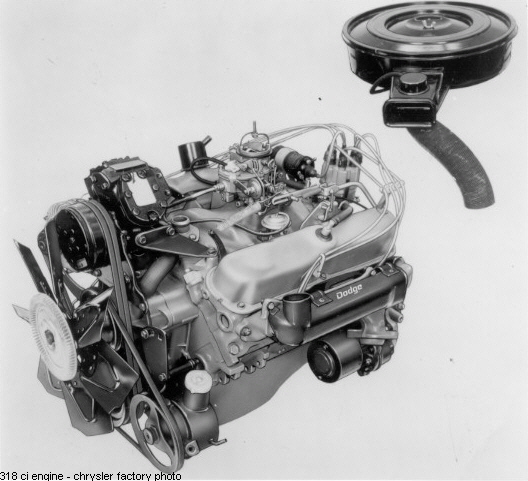

Only the Slant Six and Chryslers small block V8´s were available for the ´72-´74 Challengers. - Then the 110HP six-cylinder engine was dropped for the ´73 model and the 318ci equipped with a Carter BBD carburator, 3 speed floor-mounted manual transmission and 3.23 axle ratio became the basic model with moderate 150 HP.

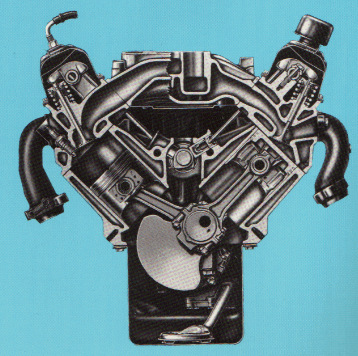

The more performance oriented 340/360ci engines came with 4bbl ThermoQuad carburator, steel crank, modified heads and dual plane intakes as well as dual exhaust pipes and offered 240/245 HP and higher torque. The V8-engines are belonging to Chrysler LA-Engine series that was already introduced in 1964. From 1973 on all Chrysler models received electronic ignition and electric assisted choke, which was before part of the ´72 340ci engine option. Manymodels
